Butterfly living-hinge box

Four wings spread wide. Garden gifts, memorial keepsakes, a girl’s birthday box.

Four wings. The wall is one strip of plywood with a living hinge cut into it, so the whole outline wraps from a flat sheet. Set the size in millimetres, pick a hinge pattern and a lid, watch it fold in 3D, then export the cut file for your laser.

Open the Butterfly in the Studio See Pro pricing

Pro shape: preview and fold it free, export from $9 a month or $149 once.

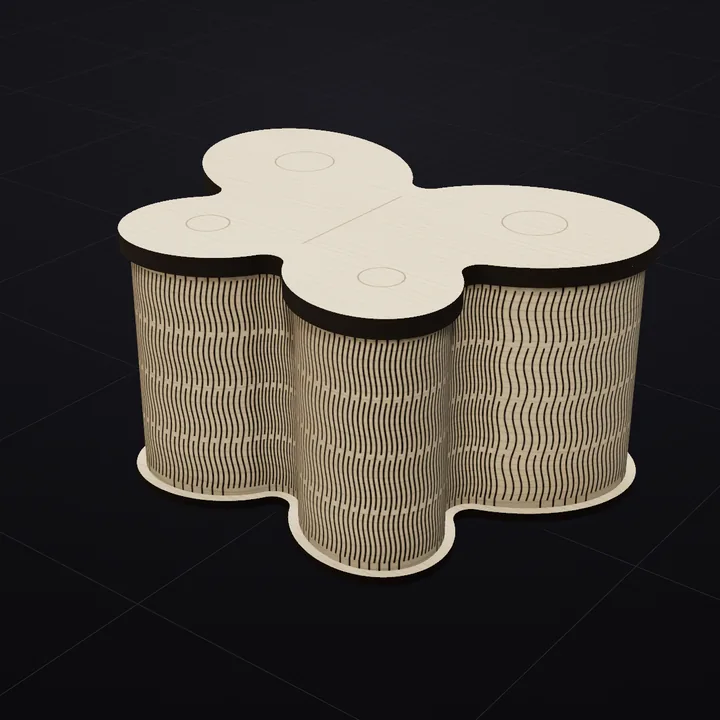

Butterfly box: a 3D render of the laser-cut living-hinge box in Baltic birch with its scored lid drawing

At the suggested size

184 × 131 × 80 mm on 3 mm plywood

These numbers come from the same engine that makes your file, built at the size the Studio suggests with the Straight Lattice hinge. Change the size, stock or pattern and they update live.

parts
6
on 2 sheets of 420 × 297 mm
of cutting
26.5 m
787 hinge cuts
wall length
576 mm
in 2 strips that butt-joint
tightest bend
R19 mm
rounded to suit 3 mm stock
hinge load
92%
of the safe twist limit
lid art
Scored
a matching line drawing on the lid
Butterfly lid as the laser sees it: red cut outline and blue scored lid art
The lid, as the laser sees it. Red is the cut, blue is the scored lid art. Turn lid art off in the Assembly tab for a plain lid.
Three lids

Drop-in, Snap-lock, Magnetic Lip. Every lid works with every shape.

Three stocks

3 mm, 4 mm, 6 mm. Hinge spacing and corner radii follow the thickness.

Kerf-compensated

Tabs grow and slots shrink by half your kerf, so parts press-fit without sanding.

Hinge patterns

Hinges that suit a butterfly

Any of the 21 patterns works on this shape; the cut spacing adapts to each curve of the wall. These four suit the Easter and St. Patrick's Day collection. Each link opens the Butterfly with that hinge.

Leaf Vine cut layout: red cut lines and blue score lines
Leaf VinePro
Mirrored arcs form leaves
Basket Weave cut layout: red cut lines and blue score lines
Basket WeavePro
Mirrored waves
Fish Scales cut layout: red cut lines and blue score lines
Fish ScalesPro
Arched dashes
S-Curve Sine cut layout: red cut lines and blue score lines
S-Curve SinePro
Wavy S-curves

Leaf Vine: Mirrored arcs that close into leaves on a vine. Botanical and wedding boxes, spring and autumn collections.

Before you cut

From file to finished box

Import the SVG at 1:1, give the blue layer a light score pass and the red layer a full cut, score first, then cut. The guides cover settings by machine and material, assembly, and selling what you make.
