Game Controller living-hinge box

A controller with two grips. Gamer gifts, a gift-card box for game credit.

Controller with two grips. The wall is one strip of plywood with a living hinge cut into it, so the whole outline wraps from a flat sheet. Set the size in millimetres, pick a hinge pattern and a lid, watch it fold in 3D, then export the cut file for your laser.

Open the Game Controller in the Studio See Pro pricing

Pro shape: preview and fold it free, export from $9 a month or $149 once.

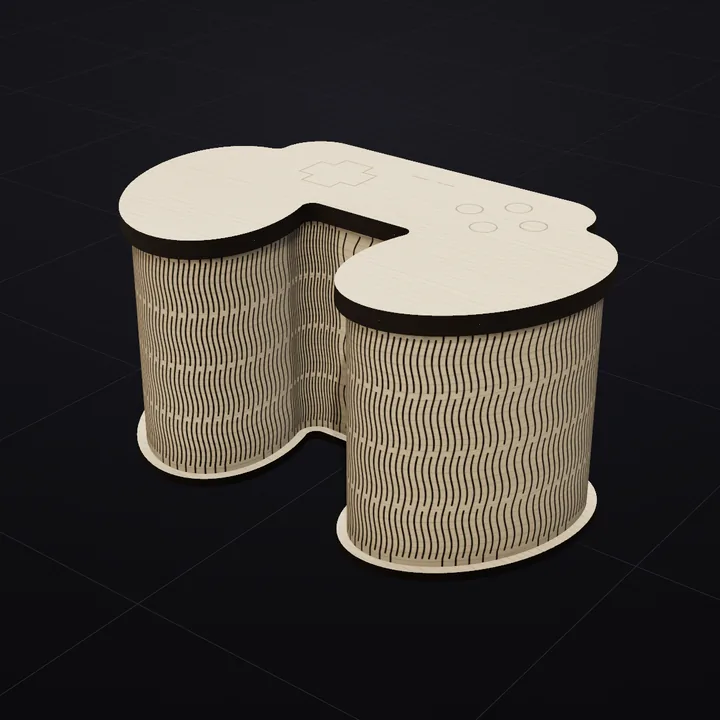

Game Controller box: a 3D render of the laser-cut living-hinge box in Baltic birch with its scored lid drawing

At the suggested size

189 × 116 × 80 mm on 3 mm plywood

These numbers come from the same engine that makes your file, built at the size the Studio suggests with the Straight Lattice hinge. Change the size, stock or pattern and they update live.

parts
6
on 2 sheets of 420 × 297 mm
of cutting
24.2 m
700 hinge cuts
wall length
591 mm
in 2 strips that butt-joint
tightest bend
R11 mm
rounded to suit 3 mm stock
hinge load
92%
of the safe twist limit
lid art
Scored
a matching line drawing on the lid
Game Controller lid as the laser sees it: red cut outline and blue scored lid art
The lid, as the laser sees it. Red is the cut, blue is the scored lid art. Turn lid art off in the Assembly tab for a plain lid.
Three lids

Drop-in, Snap-lock, Magnetic Lip. Every lid works with every shape.

Three stocks

3 mm, 4 mm, 6 mm. Hinge spacing and corner radii follow the thickness.

Kerf-compensated

Tabs grow and slots shrink by half your kerf, so parts press-fit without sanding.

Hinge patterns

Hinges that suit a game controller

Any of the 21 patterns works on this shape; the cut spacing adapts to each curve of the wall. These four suit the Hobbies and fun collection. Each link opens the Game Controller with that hinge.

Lightning cut layout: red cut lines and blue score lines
LightningPro
Sawtooth bolts
Zipper cut layout: red cut lines and blue score lines
ZipperPro
Interlocking square teeth
Morse cut layout: red cut lines and blue score lines
MorsePro
Long and short dashes
Battlement cut layout: red cut lines and blue score lines
BattlementPro
Square-wave castle steps

Lightning: Sawtooth bolts. Superhero parties, rock and metal fans, gamer gifts.

Before you cut

From file to finished box

Import the SVG at 1:1, give the blue layer a light score pass and the red layer a full cut, score first, then cut. The guides cover settings by machine and material, assembly, and selling what you make.
