Ghost living-hinge box

A dome with a scalloped hem. Halloween candy, trick-or-treat gifts, spooky-cute décor.

Dome with a scalloped hem. The wall is one strip of plywood with a living hinge cut into it, so the whole outline wraps from a flat sheet. Set the size in millimetres, pick a hinge pattern and a lid, watch it fold in 3D, then export the cut file for your laser.

Open the Ghost in the Studio See Pro pricing

Pro shape: preview and fold it free, export from $9 a month or $149 once.

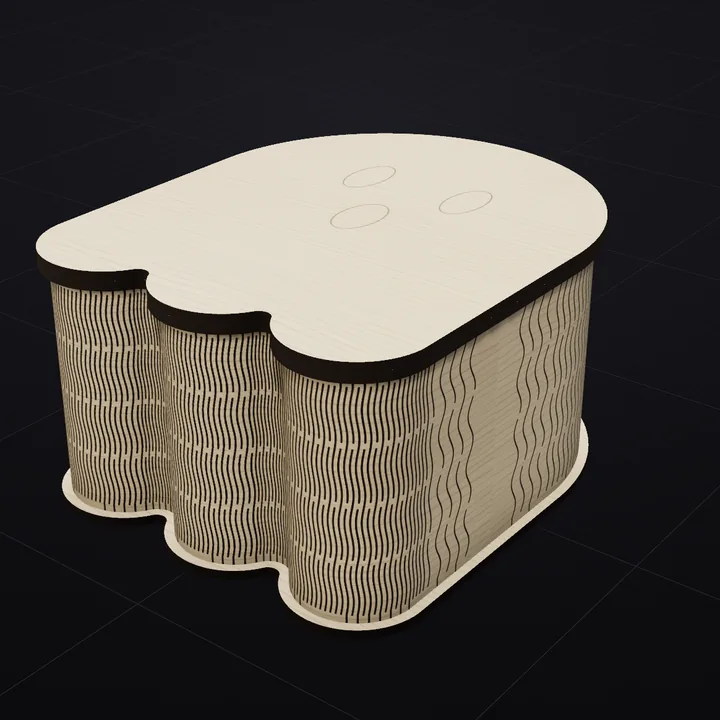

Ghost box: a 3D render of the laser-cut living-hinge box in Baltic birch with its scored lid drawing

At the suggested size

140 × 170 × 80 mm on 3 mm plywood

These numbers come from the same engine that makes your file, built at the size the Studio suggests with the Straight Lattice hinge. Change the size, stock or pattern and they update live.

parts
6
on 2 sheets of 420 × 297 mm
of cutting
19.8 m
552 hinge cuts
wall length
531 mm
in 2 strips that butt-joint
tightest bend
R19 mm
rounded to suit 3 mm stock
hinge load
92%
of the safe twist limit
lid art
Scored
a matching line drawing on the lid
Ghost lid as the laser sees it: red cut outline and blue scored lid art
The lid, as the laser sees it. Red is the cut, blue is the scored lid art. Turn lid art off in the Assembly tab for a plain lid.
Three lids

Drop-in, Snap-lock, Magnetic Lip. Every lid works with every shape.

Three stocks

3 mm, 4 mm, 6 mm. Hinge spacing and corner radii follow the thickness.

Kerf-compensated

Tabs grow and slots shrink by half your kerf, so parts press-fit without sanding.

Hinge patterns

Hinges that suit a ghost

Any of the 21 patterns works on this shape; the cut spacing adapts to each curve of the wall. These four suit the Halloween collection. Each link opens the Ghost with that hinge.

Lightning cut layout: red cut lines and blue score lines
LightningPro
Sawtooth bolts
Battlement cut layout: red cut lines and blue score lines
BattlementPro
Square-wave castle steps
Voronoi Mesh cut layout: red cut lines and blue score lines
Voronoi MeshPro
Seeded organic cells
Zipper cut layout: red cut lines and blue score lines
ZipperPro
Interlocking square teeth

Lightning: Sawtooth bolts. Superhero parties, rock and metal fans, gamer gifts.

Before you cut

From file to finished box

Import the SVG at 1:1, give the blue layer a light score pass and the red layer a full cut, score first, then cut. The guides cover settings by machine and material, assembly, and selling what you make.

More like this

Halloween, and neighbours

Pumpkin lid: red cut line with its scored lid art in blue
PumpkinPro
Five soft lobes
Coffin lid: red cut line with its scored lid art in blue
CoffinPro
Gothic six-sided case
Bat lid: red cut line with its scored lid art in blue
BatPro
Scalloped wings, pointed ears
Witch Hat lid: red cut line with its scored lid art in blue
Witch HatPro
Crooked cone, wide brim
Cauldron lid: red cut line with its scored lid art in blue
CauldronPro
Bubbling pot on little legs
Wrapped Candy lid: red cut line with its scored lid art in blue
Wrapped CandyPro
Sweet with twisted ends
Maple Leaf lid: red cut line with its scored lid art in blue
Maple LeafPro
Three lobes and a stem
Pinecone lid: red cut line with its scored lid art in blue
PineconePro
Scaled oval cone
All shapes in Halloween Browse all 100 shapes

Questions about the ghost box

Is the Ghost box free to export?

You can design it, change every setting and fold it in 3D for free. Exporting its cut file needs Pro: $9 per month, $59 per year, $149 one-time. The Rounded Box, Curved Cylinder and Hexagon export free, so you can test your laser settings before you buy.

What size can a ghost box be?

Anything from 60 to 400 mm across and 30 to 250 mm tall; the suggested size is 140 × 170 mm. Picking the shape keeps your current scale and applies its proportions, then you can set the width and length to the millimetre. Curves need a minimum radius for the hinge to bend (8 mm on 3 mm stock, 10 mm on 4 mm, 15 mm on 6 mm), and the studio warns you if a size is too small for your stock.

Which lasers and software can cut it?

Any laser whose software imports SVG or DXF at 1:1 in millimetres: LightBurn (Omtech, Monport, Ortur, Atomstack, Creality, K40 and most CO₂ and diode machines), xTool Creative Space, Glowforge (SVG), LaserGRBL and Inkscape. The file has a red cut layer, a blue score layer for the lid art and fold marks, and a black sheet boundary.

What material should I cut it from?

3, 4 or 6 mm flat sheet stock. Baltic birch plywood bends best; poplar plywood and MDF work for gentler curves. The hinge spacing is sized for the thickness you pick, and the free bend test strip tells you how far your particular sheet will go.

Can I sell ghost boxes I make with it?

Yes. Boxes you cut from your exports are yours to sell, on Etsy, at fairs or anywhere else. What you may not do is resell or share the cut files themselves as a template.

Fold a ghost box in your browser

No account, no download to install. The design opens ready to size.

Open the Studio
