Pear living-hinge box

A round base with a soft waist. Fruit-themed kitchen gifts, a partridge-in-a-pear-tree Christmas box.

Round base, soft waist. The wall is one strip of plywood with a living hinge cut into it, so the whole outline wraps from a flat sheet. Set the size in millimetres, pick a hinge pattern and a lid, watch it fold in 3D, then export the cut file for your laser.

Open the Pear in the Studio See Pro pricing

Pro shape: preview and fold it free, export from $9 a month or $149 once.

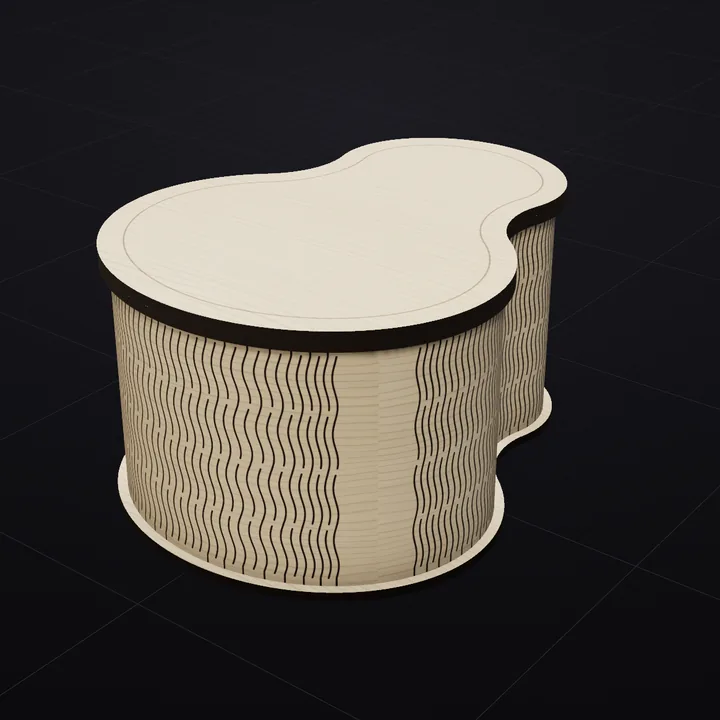

Pear box: a 3D render of the laser-cut living-hinge box in Baltic birch with its scored lid drawing

At the suggested size

130 × 165 × 80 mm on 3 mm plywood

These numbers come from the same engine that makes your file, built at the size the Studio suggests with the Straight Lattice hinge. Change the size, stock or pattern and they update live.

parts
6
on 2 sheets of 420 × 297 mm
of cutting
17.1 m
480 hinge cuts
wall length
445 mm
in 2 strips that butt-joint
tightest bend
R25 mm
rounded to suit 3 mm stock
hinge load
92%
of the safe twist limit
lid art
Border
an inset line around the lid
Pear lid as the laser sees it: red cut outline and blue scored lid art
The lid, as the laser sees it. Red is the cut, blue is the scored lid art.
Three lids

Drop-in, Snap-lock, Magnetic Lip. Every lid works with every shape.

Three stocks

3 mm, 4 mm, 6 mm. Hinge spacing and corner radii follow the thickness.

Kerf-compensated

Tabs grow and slots shrink by half your kerf, so parts press-fit without sanding.

Hinge patterns

Hinges that suit a pear

Any of the 21 patterns works on this shape; the cut spacing adapts to each curve of the wall. These four suit the Food and treats collection. Each link opens the Pear with that hinge.

Braid cut layout: red cut lines and blue score lines
BraidPro
Three-strand plait
Basket Weave cut layout: red cut lines and blue score lines
Basket WeavePro
Mirrored waves
Morse cut layout: red cut lines and blue score lines
MorsePro
Long and short dashes
Fish Scales cut layout: red cut lines and blue score lines
Fish ScalesPro
Arched dashes

Braid: A three-strand plait running up each column. Hair-accessory boxes, bread and bakery themes, Celtic designs.

Before you cut

From file to finished box

Import the SVG at 1:1, give the blue layer a light score pass and the red layer a full cut, score first, then cut. The guides cover settings by machine and material, assembly, and selling what you make.

More like this

Food and treats, and neighbours

Peanut lid: red cut line with its scored lid art in blue
PeanutPro
Twin lobes
Bean lid: red cut line with its scored lid art in blue
BeanPro
Kidney curve
Strawberry lid: red cut line with its scored lid art in blue
StrawberryPro
Berry with a leafy cap
Cherries lid: red cut line with its scored lid art in blue
CherriesPro
Pair with stems and a leaf
Cupcake lid: red cut line with its scored lid art in blue
CupcakePro
Swirled frosting, cherry on top
Pizza Slice lid: red cut line with its scored lid art in blue
Pizza SlicePro
Slice with a curved crust
Coffee Cup lid: red cut line with its scored lid art in blue
Coffee CupPro
Takeaway cup and lid
Guitar Pick lid: red cut line with its scored lid art in blue
Guitar PickPro
Classic pick outline
All shapes in Food and treats Browse all 100 shapes

Questions about the pear box

Is the Pear box free to export?

You can design it, change every setting and fold it in 3D for free. Exporting its cut file needs Pro: $9 per month, $59 per year, $149 one-time. The Rounded Box, Curved Cylinder and Hexagon export free, so you can test your laser settings before you buy.

What size can a pear box be?

Anything from 60 to 400 mm across and 30 to 250 mm tall; the suggested size is 130 × 165 mm. Picking the shape keeps your current scale and applies its proportions, then you can set the width and length to the millimetre. Curves need a minimum radius for the hinge to bend (8 mm on 3 mm stock, 10 mm on 4 mm, 15 mm on 6 mm), and the studio warns you if a size is too small for your stock.

Which lasers and software can cut it?

Any laser whose software imports SVG or DXF at 1:1 in millimetres: LightBurn (Omtech, Monport, Ortur, Atomstack, Creality, K40 and most CO₂ and diode machines), xTool Creative Space, Glowforge (SVG), LaserGRBL and Inkscape. The file has a red cut layer, a blue score layer for the lid art and fold marks, and a black sheet boundary.

What material should I cut it from?

3, 4 or 6 mm flat sheet stock. Baltic birch plywood bends best; poplar plywood and MDF work for gentler curves. The hinge spacing is sized for the thickness you pick, and the free bend test strip tells you how far your particular sheet will go.

Can I sell pear boxes I make with it?

Yes. Boxes you cut from your exports are yours to sell, on Etsy, at fairs or anywhere else. What you may not do is resell or share the cut files themselves as a template.

Fold a pear box in your browser

No account, no download to install. The design opens ready to size.

Open the Studio
