Curved Cylinder living-hinge box

A round or oval box where the whole wall is one even wrap. Candle gifts, pen pots, a round keepsake box.

Round or oval, even wrap. The wall is one strip of plywood with a living hinge cut into it, so the whole outline wraps from a flat sheet. Set the size in millimetres, pick a hinge pattern and a lid, watch it fold in 3D, then export the cut file for your laser.

Open the Curved Cylinder in the Studio Free to export

Free shape: design it and download the SVG, no account needed.

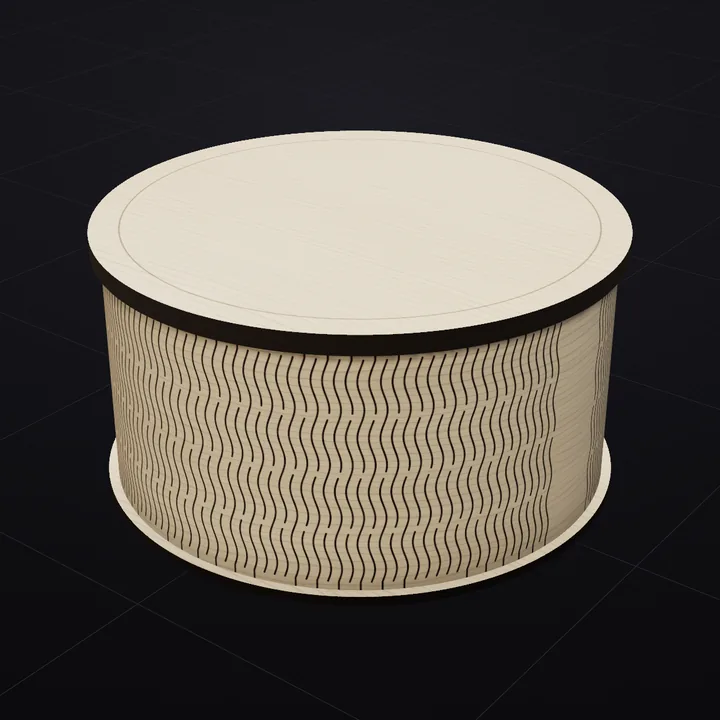

Curved Cylinder box: a 3D render of the laser-cut living-hinge box in Baltic birch with its scored lid drawing

At the suggested size

150 × 150 × 80 mm on 3 mm plywood

These numbers come from the same engine that makes your file, built at the size the Studio suggests with the Straight Lattice hinge. Change the size, stock or pattern and they update live.

parts
6
on 2 sheets of 420 × 297 mm
of cutting
14.2 m
375 hinge cuts
wall length
443 mm
in 2 strips that butt-joint
tightest bend
R70 mm
rounded to suit 3 mm stock
hinge load
91%
of the safe twist limit
lid art
Border
an inset line around the lid
Curved Cylinder lid as the laser sees it: red cut outline and blue scored lid art
The lid, as the laser sees it. Red is the cut, blue is the scored lid art.
Three lids

Drop-in, Snap-lock, Magnetic Lip. Every lid works with every shape.

Three stocks

3 mm, 4 mm, 6 mm. Hinge spacing and corner radii follow the thickness.

Kerf-compensated

Tabs grow and slots shrink by half your kerf, so parts press-fit without sanding.

Hinge patterns

Hinges that suit a curved cylinder

Any of the 21 patterns works on this shape; the cut spacing adapts to each curve of the wall. These four suit the Classic collection. Each link opens the Curved Cylinder with that hinge.

Straight Lattice cut layout: red cut lines and blue score lines
Straight LatticeFree
Staggered slots, even flex
S-Curve Sine cut layout: red cut lines and blue score lines
S-Curve SinePro
Wavy S-curves
Herringbone cut layout: red cut lines and blue score lines
HerringbonePro
Parquet-style slants
Twill cut layout: red cut lines and blue score lines
TwillPro
Slanted dashes

Straight Lattice: Staggered straight slots in a brick bond, the pattern most people recognise as a living hinge. A first box, tight budgets of cut time, and when you want the wood grain to show more than the pattern.

Before you cut

From file to finished box

Import the SVG at 1:1, give the blue layer a light score pass and the red layer a full cut, score first, then cut. The guides cover settings by machine and material, assembly, and selling what you make.
